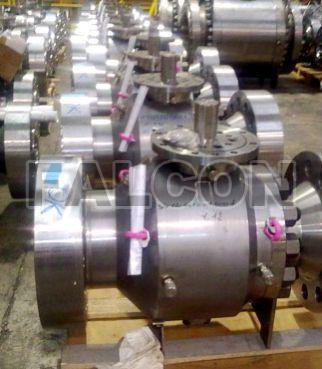

chrome moly/alloy steel valves f11/f22/f5/f9
falcon manufactures and stocks a large range of ‘chrome-moly’ valves. these valves are manufactured from low alloy steel containing chromium and molybdenum making them suitable for higher temperature service especially for higher pressure and temperature combinations. in addition, these valves have the added advantage of anti-corrosive properties. grades include forged astm a182 f5, f5a, f9, f11 and f22, and their cast equivalents astm a217 c5, c12, wc5, wc6 and wc9. higher grades like a112 f9/astm a217 c12a are available on an indent basis.
types
- alloy steel gate valves
- alloy steel globe valves
- alloy steel check valves
size
- gate valve: ¼” to 48”
- globe valve: ¼” to 24”
- check valve: ¼” to 36”
pressure rating
- 150# to 2500#
end connections
- flanged
- butt weld
- socket weld
Equivalent Grades & Applications
| Material Group | Common | Type | UNS | Forging Spec. | Casting Spec. | DIN | DIN W. | Application |
| Name | Equivalent | No | ||||||
| Low Alloy Steel | Moly Steel | C-1/2Mo | K12822 | A182-F11 cl2 | A217-WC1 | 15M03 | 1.5415 | Up to 470ºC*(875ºF) |
| Alloy Steel Chrome Moly | 1.1/4Cr-1/2Mo | K11572 | A182-F11 cl2 | A217-WC6 | 13CRM044 | 1.7335 | Up to 593ºC (1100ºF) | |
| 2.1/4Cr-1Mo | K21590 | A182-F22 cl3 | A217-WC9 | 10CRM0910 | 1.738 | Up to 593ºC (1100ºF), HP steam | ||
| 5Cr-1/2Mo | K41545 | A182-F5/F5a | A217-C5 | 12CRMO195 | 1.7362 | High temp refinery service | ||
| 9Cr-1Mo | K90941 | A182-F9 | A217-C12 | X 12 CrMo 9 1 | 1.7386 | High temp erosive refinery service | ||
| 9Cr-1Mo-V | A182-F91 | A217-C12A | X 10 CrMoVNb 9 1 | 1.4903 | High pressure steam |
